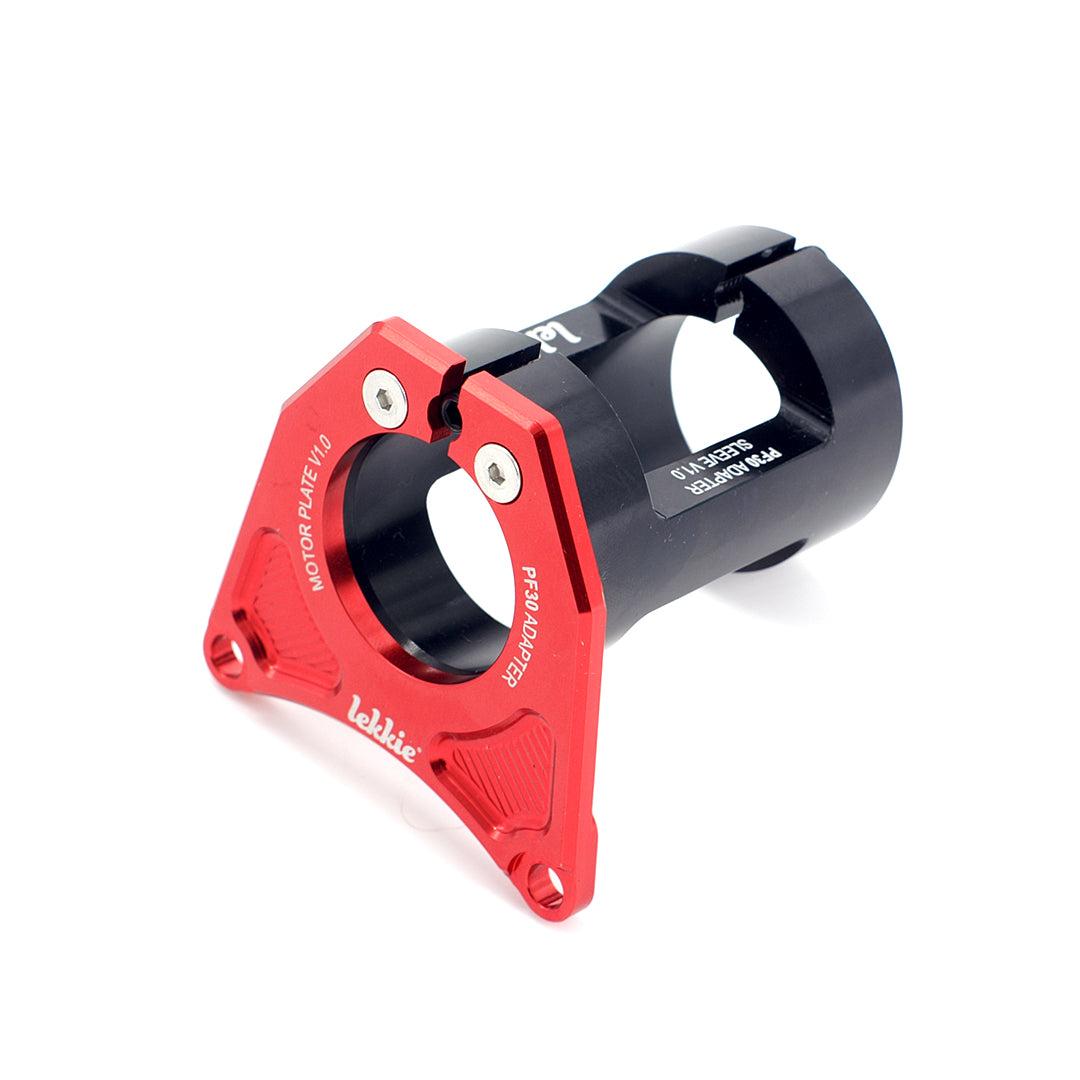

ThePF-30 adapter allows a Bafang BBS01, BBS02 or BBSHD bottom bracket motor to be installed in a frame fitted with a Press-Fit PF-30 bottom bracket shell. It converts the diameter of the housing to make motor mounting compatible while maintaining perfect alignment of the drivetrain.
Made from high-quality CNC aluminum, it is lightweight, strong and durable, guaranteeing a stable and reliable installation for your electric rides.
Highlights
-
Perfect compatibility: designed for Bafang BBS01, BBS02 and BBSHD on PF-30 housings.
-
Robust construction: strong, lightweight CNC aluminum.
-
Simple installation: fits easily into the Press-Fit PF-30 housing.
-
Optimized alignment: ensures smooth, quiet crankset operation.
-
Durable use: resistant to wear and vibration from electrical outlets.
Technical specifications
| Specification |
Detail |
| Model |
PF-30 adapter |
| Engine compatibility |
Bafang BBS01, BBS02, BBSHD |
| Frame compatibility |
Press-Fit PF-30 |
| Material |
CNC aluminum |
| Finish |
Anodized, wear-resistant |
| Weight |
Approx. 20 g |
| Type of use |
Bottom bracket motor adapter for PF-30 frame |
| Installation |
Between motor and PF-30 housing |
| Recommended use |
Electric bike conversion, motor alignment optimization |
