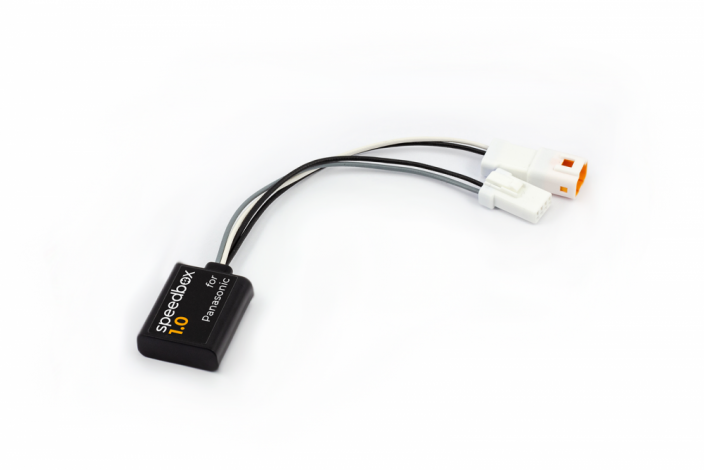

The SpeedBox 1.0 for Panasonic (GX series) is a debriding module designed for electric bikes equipped with Panasonic GX0, GX Ultimate, GX Ultimate Pro, GX Power Plus and GX Ultimate Pro FIT motors.
It removes the 25 km/h assistance limit, offering assistance up to 50 km/h while maintaining correct speed and distance display on the bike's screen.
Once installed, the module operates continuously, without the need for manual activation.
Key Features
-
Remove assistance limit: Eliminates the 25 km/h restriction.
-
Actual data display: current speed, maximum speed, average speed, mileage and range displayed correctly.
-
Automatic activation: works as soon as the bike is switched on.
-
Simple installation: original connectors for plug & play installation without modifications.
Technical Description
| Specification |
Detail |
| Type of Use |
Panasonic GX0/GX Ultimate/GX Ultimate Pro e-bike tuning (private use recommended) |
| Motor Compatibility |
GX0, GX Ultimate, GX Ultimate Pro, GX Power Plus, GX Ultimate Pro FIT |
| Activation/Deactivation |
Automatic when the bike is switched on |
| Activation indication |
Display 9.9 km/h briefly |
| Indication of deactivation |
2.5 km/h display briefly |
| Recommended max. speed |
Up to 50 km/h |
| Actual speed display |
Yes |
| Correct distance |
Yes |
| Installation |
Plug & play with original connectors |
| Bluetooth version (B.Tuning) |
No |
| Incompatibilities |
Not compatible with SpeedBox application |
