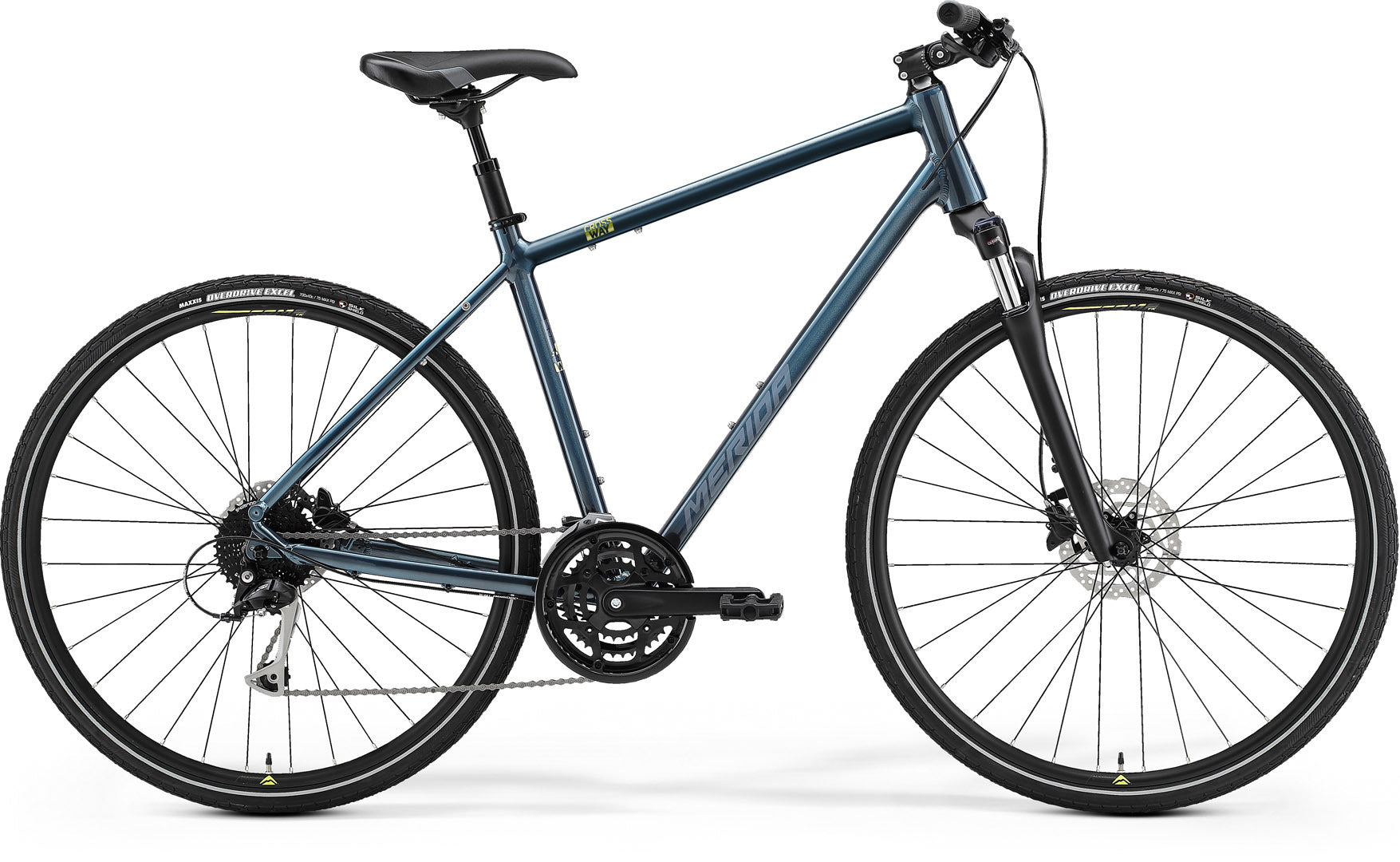

| Modnum |
42213 |
| series |
Crossway |
| Year |
2022 |
| Frame |
CROSSWAY TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard |
| Color |
TEAL-BLUE |
| Fork |
Suntour NEX HLO, Coil, 63mm suspension travel, Lockout, 700x48C max. wheelsize |
| Front derailleur |
Shimano M370 |
| Rear derailleur |
Shimano Alivio |
| Forward speed control |
Shimano Altus |
| Reverse speed control |
Shimano Altus |
| Brake leverage |
Tektro M275 |
| Front brake |
Tektro M275, 2 piston/ 160 mm |
| Rear brake |
Tektro M275, 2 piston/ 160 mm |
| Channel |
KMC M99 |
| Cassette |
Shimano HG200, 11-34 teeth, 9 speed |
| Pedal axle |
FSA TH-7420ST Cartridge Bearing |
| Seat post |
MERIDA TK, 30.9mm diameter, 10mm setback, 40mm seatpost suspension travel |
| Saddle |
MERIDA Cross Sport |
| Front hub |
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock |
| Rear hub |
Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock |
| Tires |
Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild // Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild |
| Rims |
MERIDA COMP TK, 20mm inner width, 17mm height, material: aluminium |
| Wheels |
700 |
| Hanger |
MERIDA COMP CC, material: aluminium, 660mm width, 25mm rise |
| Stem |
MERIDA COMP TK, material: aluminium, 31.8mm diameter, adjustable, 80 mm-XXS/XS/S, 90 mm-M/L, 100 mm-XL |
| Management |
MERIDA M2346 Neck |
