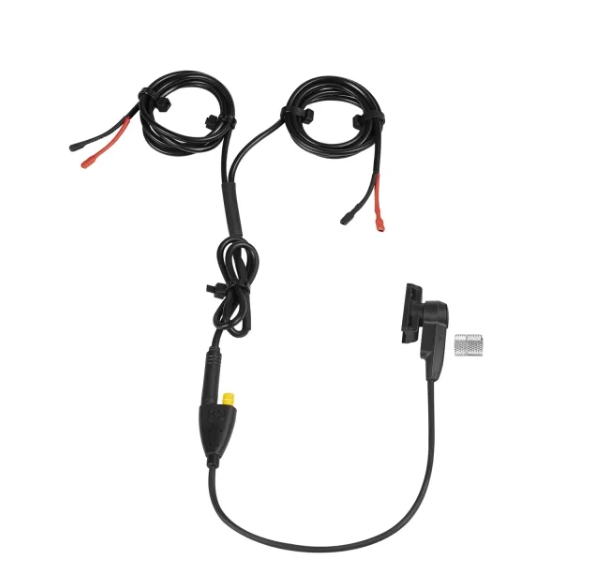

This speed sensor with a Y-splitter is specially designed for Tongsheng TSDZ2 and TSDZ2B mid-drive motors.
It combines the standard speed detection function with a dedicated output for lighting, enabling a front headlight and a rear light to be powered directly via the motor.
The 6 V / 3 W output is compatible with most standard e-bike lights, and the lighting can be controlled via the display (VLCD5, VLCD6, XH18, 850C, etc.).
Ideal for neat, integrated installations, this system eliminates the need for an external battery or a separate power supply for the lights.
Key features
-
Speed sensor + integrated Y-splitter
-
6 V light output suitable for 3 W lights
-
Allows connection of a front headlight and a rear light
-
Plug-and-play installation on TSDZ2 / TSDZ2B
-
Lighting controllable directly from the display
-
A neat and reliable solution for integrating lighting into the motor system
-
Robust wiring, designed for everyday e-bike use
Technical specifications
| Feature |
Details |
| Brand / Model |
Tongsheng – Speed Sensor + Y-Splitter |
| Compatibility |
TSDZ2 / TSDZ2B mid-drive motors |
| Function |
Speed detection + lighting power supply |
| Lighting output |
6 V DC / 3 W (headlight + rear light) |
| Connectivity |
Standard Tongsheng (plug-and-play) |
| Sensor mounting |
Rear stay + wheel magnet |
| Cable length |
Varies depending on version (usually 30–60 cm) |
| Use |
City cycling, trekking, e-bike conversions |
