Product Description

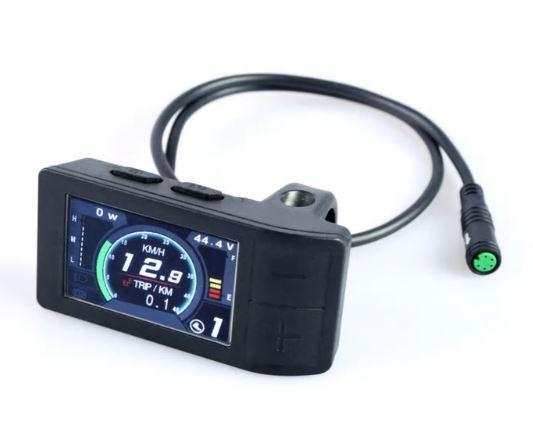

The LCD 500C console is a multifunction color display for electric bikes, compatible with Bafang BBS01, BBS02 and BBSHD motors. It tracks speed, distance, assistance level, battery voltage and other essential data. Ergonomic and compact, it attaches easily to the handlebars for intuitive control during your urban rides or longer outings.
Key Features
-
Compatible with Bafang motors: BBS01, BBS02 and BBSHD.
-
Clear color display: information legible even in bright sunlight.
-
Easy navigation: ergonomic buttons for safe use while driving.
-
Comprehensive functions: speed, distance, assistance level, range, battery voltage.
-
Reliable and robust: waterproof, vibration-proof and weatherproof.
Technical Description
| Specification |
Detail |
| Component type |
Color LCD console for electric bikes |
| Motor Compatibility |
Bafang BBS01, BBS02, BBSHD |
| Screen |
Backlit color LCD |
| Main functions |
Current, average and maximum speed, distance, range, assistance level, battery voltage |
| Buttons |
Ergonomic, accessible |
| Attachment |
Handlebars (standard diameter 22.2 mm) |
| Power supply |
Via the bike's main battery |
| Dimensions |
105 x 65 mm |
| Weight |
Approx. 140 g |
| Protection Rating |
IP65 (water and dust resistant) |
