Product Description

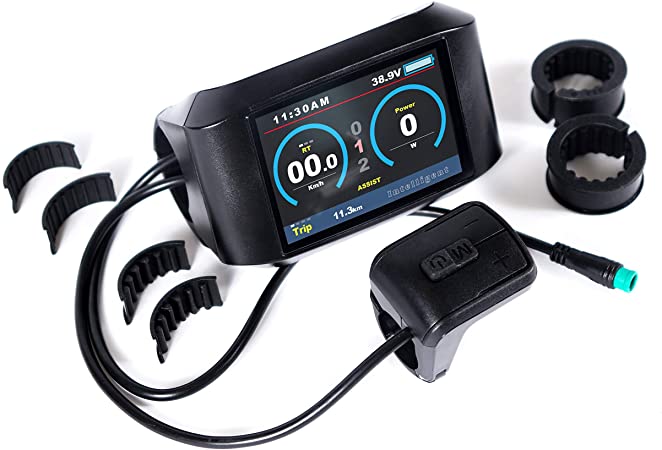

The LCD 750C console is a high-end color display designed for electric bikes equipped with Bafang BBS01, BBS02 or BBSHD motors. Its large backlit display clearly shows all essential data: speed, distance, assistance level, range, battery voltage, and much more. Elegant, intuitive and durable, it offers an enhanced riding experience and total control over your electric assistance system.
Key Features
-
Bafang motor compatibility: compatible with Bafang BBS01 (250 W), BBS02 (500-750 W) and BBSHD (1000 W) systems.
-
High-definition color display: clear, legible information, even in bright sunlight.
-
Intuitive navigation: separate ergonomic buttons for easy use while driving.
-
Advanced features: display of charge level, voltage, speed, assistance mode and total mileage.
-
Resistance and reliability: rugged, waterproof housing designed for real-life road conditions.
Technical Description
| Specification |
Detail |
| Component type |
Color LCD console for electric bikes |
| Compatibility |
Bafang motors BBS01, BBS02, BBSHD (with 5-pin connector) |
| Screen |
TFT color LCD, backlit |
| Screen size |
3.2 inches approx. |
| Resolution |
320 × 240 px (high readability) |
| Main functions |
Instantaneous, average, max speed - Distance - Autonomy - Battery voltage - Assistance level - Time - Running mode |
| Control buttons |
Handlebar mounted |
| Power supply |
Via the bike's main battery (5 V) |
| Connections |
Bafang 5-pin waterproof connector (green) |
| Attachment |
On handlebars (standard diameter 22.2 mm) |
| Weight |
Approximately 150 g |
| Protection Rating |
IP65 (water and dust resistant) |
| Use |
MTB, VAE, city bikes, speed pedelec |
