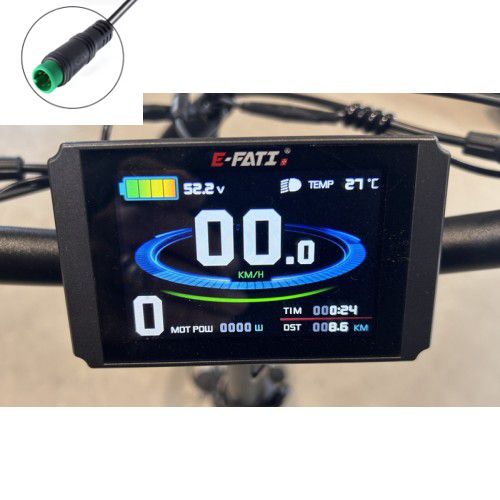

The KT-LCD8H is a modern, ergonomic colour display designed for ‘KT Controller’-type electric assist systems. Compatible with electric bikes, fat bikes and tricycles, it provides a clear and comprehensive display of all essential information: speed, assistance level, range, battery voltage, distance travelled and motor power. Its high-definition colour display and intuitive interface ensure optimum ease of use, even in direct sunlight.
Key features
-
High-visibility colour display: a clear, modern interface, suitable for riding both day and night.
-
Multi-voltage compatibility: works with 24 V, 36 V, 48 V and up to 72 V systems, depending on the version.
-
Advanced functions: displays speed, distance, time, voltage, power, temperature and assistance level.
-
Customisable settings: P and C parameters to adjust the display, wheel, speed or PAS sensor.
-
Waterproof connector: version available with a waterproof or standard cable depending on the installation.
-
Compact design: discreet and secure handlebar mounting, suitable for E-FATI models.
Technical specifications
| Specification |
Details |
| Model |
KT-LCD8H |
| Supply voltage |
24 V / 36 V / 48 V / 72 V (depending on version) |
| Display |
Backlit colour LCD screen |
| Displayed functions |
Speed, distance, time, PAS level, motor power, battery voltage, temperature |
| Configurable settings |
P1 to P5, C1 to C14 (wheel, max speed, sensor, motor cut-off, etc.) |
| Connector |
5-pin (SM or waterproof depending on version) |
| Mounting |
Standard 22.2 mm handlebars |
| Weight |
Approximately 200 to 250 g |
| Compatibility |
KT controllers and E-FATI bikes/tricycles |
