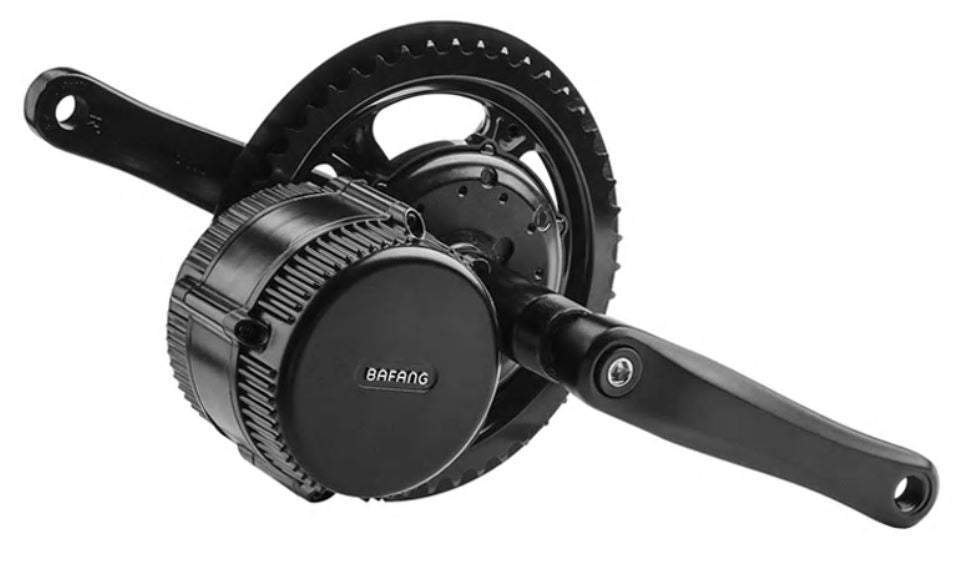

The Bafang BBS is a universal electric crankset motor renowned for its reliability, power and ease of installation. Designed to convert almost any bike into an electrically-assisted bicycle, it integrates into the crankset, replacing the standard bottom bracket.
Available in several versions (BBS01, BBS02 and BBSHD), it offers smooth, natural assistance, perfectly suited to road, mountain bike, trekking or urban commuting.
Thanks to its high torque and wide compatibility, the Bafang BBS is one of the most popular kits for converting classic bikes into high-performance e-bikes.
Key Features
-
Easy installation: fits most frames with 68-73 mm BSA housing.
-
High torque: up to 160 Nm depending on version (ideal for uphill work).
-
Compatible with 36 V, 48 V or 52 V depending on model.
-
Complete system: motor, integrated sensors, crankset and plug & play wiring.
-
Reliable and quiet: sealed motor, low maintenance and smooth operation.
-
Compatible with Hailong, Reention and Bafang PowerPack batteries.
Technical Description
| Specification |
BBS01 |
BBS02 |
BBSHD |
| Nominal voltage |
36 V |
48 V |
48 / 52 V |
| Rated power |
250 W |
500-750 W |
1000 W |
| Maximum torque |
80 Nm |
120 Nm |
160 Nm |
| Motor position |
Crankset (Mid-drive) |
Crankset (Mid-drive) |
Crankset (Mid-drive) |
| Pedaling sensor |
Integrated cadence sensor |
Integrated cadence sensor |
Integrated cadence sensor |
| Compatible bottom bracket |
BSA 68-73 mm (option 100 mm) |
BSA 68-73 mm (option 100 mm) |
BSA 68-120 mm depending on version |
| Max. assisted speed |
25 km/h (configurable) |
32-45 km/h (depending on settings) |
45 km/h+ (depending on use) |
| Motor weight |
approx. 3.9 kg |
approx. 4.3 kg |
approx. 5.8 kg |
| Waterproof rating |
IP65 |
IP65 |
IP65 |
| Compatible displays |
C965, 850C, 500C, DPC18, DP-C07 |
C965, 850C, 500C, DPC18, DP-C07 |
850C, 860C, DPC18 |
Kit contents (depending on configuration)
-
Bafang BBS crankset motor
-
Crankset (2 cranks)
-
Main harness with waterproof connectors
-
Engine brake sensor (hydraulic or mechanical option)
-
Speed sensor with magnet
-
Fastening nuts and washers
-
Compatible control panel (optional, depending on package)
Compatibility
-
Mountain bike, road, trekking and urban frames with 68-73 mm BSA housing (specific versions for 100/120 mm available).
-
36 V, 48 V or 52 V batteries depending on model.
-
Compatible with gas pedal kits, hydraulic brake sensors and Bafang displays.
