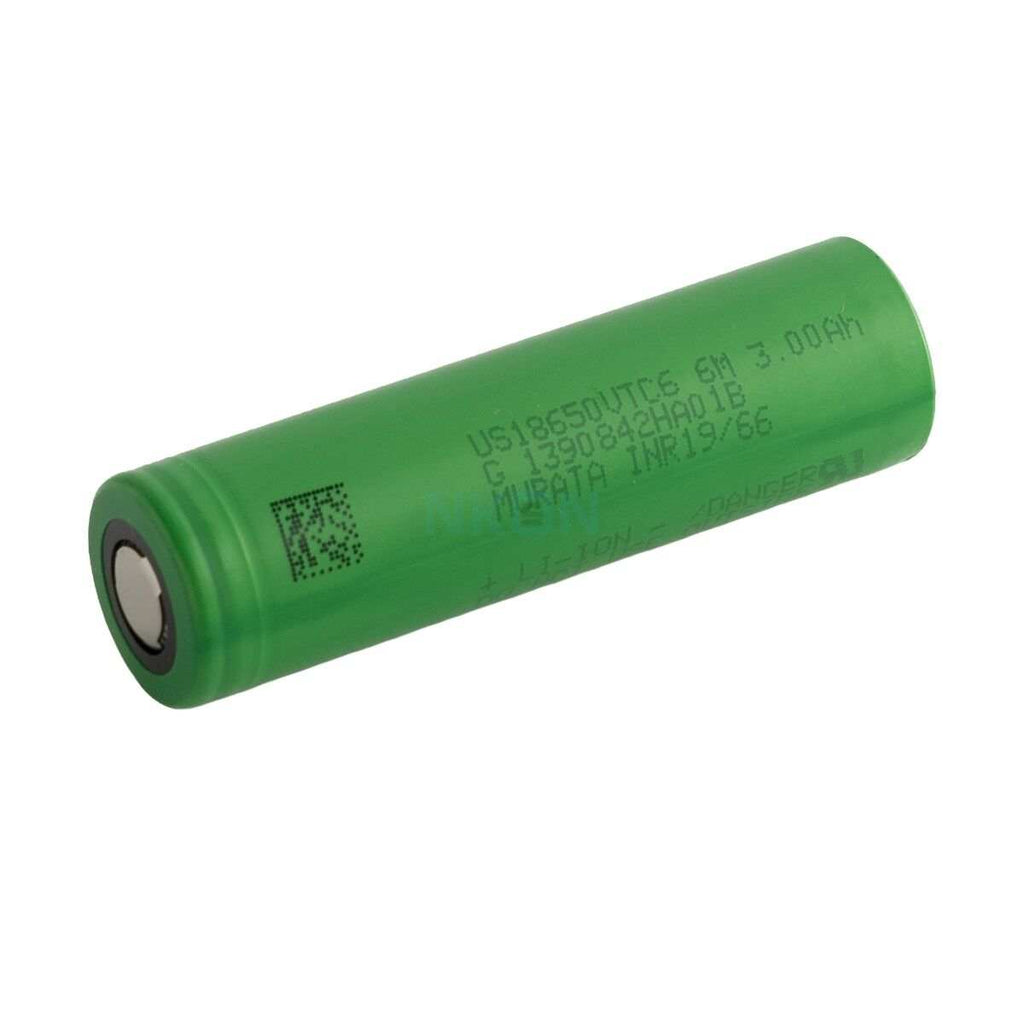

The US18650VTC6M cell is a high-performance cylindrical lithium-ion battery, designed for applications requiring a high discharge current. With a capacity of 3120 mAh combined with a continuous discharge current of up to 30 A, it stands out for its ability to deliver high power over both short and long periods.
It is particularly suitable for battery packs for power tools, high-performance e-bikes, mods, high-performance lights, or any setup requiring a high current output and good energy density.
Supplied in an unprotected version (flat-top / unprotected), it is intended for experienced users with a suitable BMS and a setup that complies with safety standards for lithium-ion batteries.
Key features
-
Very high discharge rate: 30 A — power suitable for intensive use.
-
Respectable capacity: 3120 mAh, a good balance between energy density and power.
-
Standard 18650 format — wide compatibility for custom packs.
-
Bare cell: ideal for DIY assemblies or replacing worn-out cells.
-
Proven reliability for applications requiring high currents (power tools, e-bikes, model-making, high-output lights).
Technical specifications
| Specifications |
Details |
| Model |
Murata US18650VTC6M |
| Format |
18650 (cylindrical) |
| Rated capacity |
3120 mAh |
| Nominal voltage |
3.6–3.7 V |
| Full-charge voltage |
4.20 V (to be observed) |
| Continuous discharge current |
30 A |
| Chemistry |
Lithium-ion |
| Terminal type |
Flat-top (flat terminal) |
| Built-in protection |
No (raw cell, unprotected) |
| Recommended use |
E-bikes, power tools, power banks, lamps, high-intensity battery packs |
